PGBT2504 control diode array with fast-response transient protection and high current rating

The PGBT2504 and PGBT3304 are differential-mode, fast transient protection hybrid Steering Diode/Thyristor arrays that features ultra-low capacitance and very low clamping voltage. These devices allow for more current handling and protects two-pair data lines. The PGBT2504 and PGBT3304 are ideally suited for Gigabit Ethernet interfaces in Aerospace and Military applications. These devices, with the external addition of 10 Ohm resistors per data line, can withstand pin injection levels per DO-160G requirements. In addition, the PGBT2504 and PGBT3304 meet the IEC 61000-4-2, 61000-4-2 and 61000-4-5 requirements.

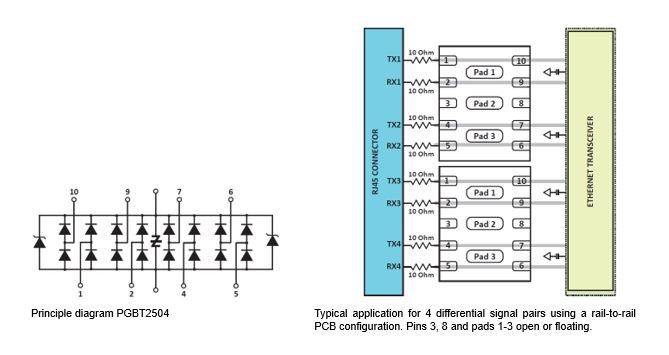

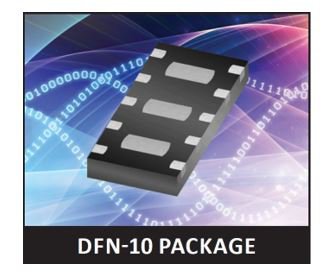

The module is designed in a DFN-10 housing and has a peak pulse power of 500 watts (Tp = 8/20 μs). The ESD protection is > 25 kV and the capacitance is an extremely low 1.0 pF (I/O – I/O).
